如何获取Cloudflare Pages的部署状态发送到 Slack

0. 背景&需求

我的博客是使用 Cloudflare Pages 部署的，

但是 Cloudflare Pages 并没有提供部署状态通知的功能，所以我想到了使用 Github Actions 来实现这个功能。

1. 前提

已经在 Github 上创建了你的网站的仓库
已经在 Cloudflare Pages 上设置好了你的 Github 仓库
- 比如我是设置成了 main 分支更新时自动部署

2. 方法

sequenceDiagram
    autonumber
    participant Cloudflare Pages
    participant Github Actions
    participant Slack
    loop Check Deployment Status
    Github Actions->>Cloudflare Pages: Request Deployment Status
    Cloudflare Pages->>Github Actions: Deployment Status
    end
    Github Actions->>Slack: Send Deployment Status

3. 实现

arddluma/cloudflare-pages-slack-notification 这个 Github Action 已经实现这个了我们所要的功能。

我们只需要准备好这个 Github Action 中使用的变量。

- name: Await CF Pages and send Slack notification
  uses: arddluma/cloudflare-pages-slack-notification@v4
  with:
    # Cloudflare API token
    apiToken: ${{ secrets.CF_API_TOKEN }}
    # CloudFlare account ID
    accountId: ${{ secrets.CF_ACC_ID  }}
    # CloudFlare Pages project name
    project: ${{ secrets.CF_PAGES_PROJECT  }}
    # Create Slack Incoming webhook and add as variable https://hooks.slack.com/...
    slackWebHook: ${{ secrets.SLACK_WEBHOOK  }}
    # Add this if you want to wait for a deployment triggered by a specfied commit
    commitHash: ${{ steps.push-changes.outputs.commit-hash }}

3.1 获得变量

1️⃣ apiToken:
- Cloudflare API token. (How to create Cloudflare API token)
2️⃣ accountId:
- CloudFlare account ID. ( Access the dashboard of Cloudflare and you’ll find the account ID in the URL)
3️⃣ project:
- CloudFlare Pages project name. (You can find it here https://dash.cloudflare.com/{your_account_id}/workers-and-pages )
4️⃣ slackWebHook:
- Create Slack Incoming webhook. (How to create Slack Incoming webhook)

1️⃣ 2️⃣ 3️⃣ 是 Github Actions 通过 Cloudflare Pages 的 API 来获取部署状态所需要的参数。

4️⃣ 是 Github Actions 发送消息给 Slack 所需要的 webhook URL。

3.2 设置变量

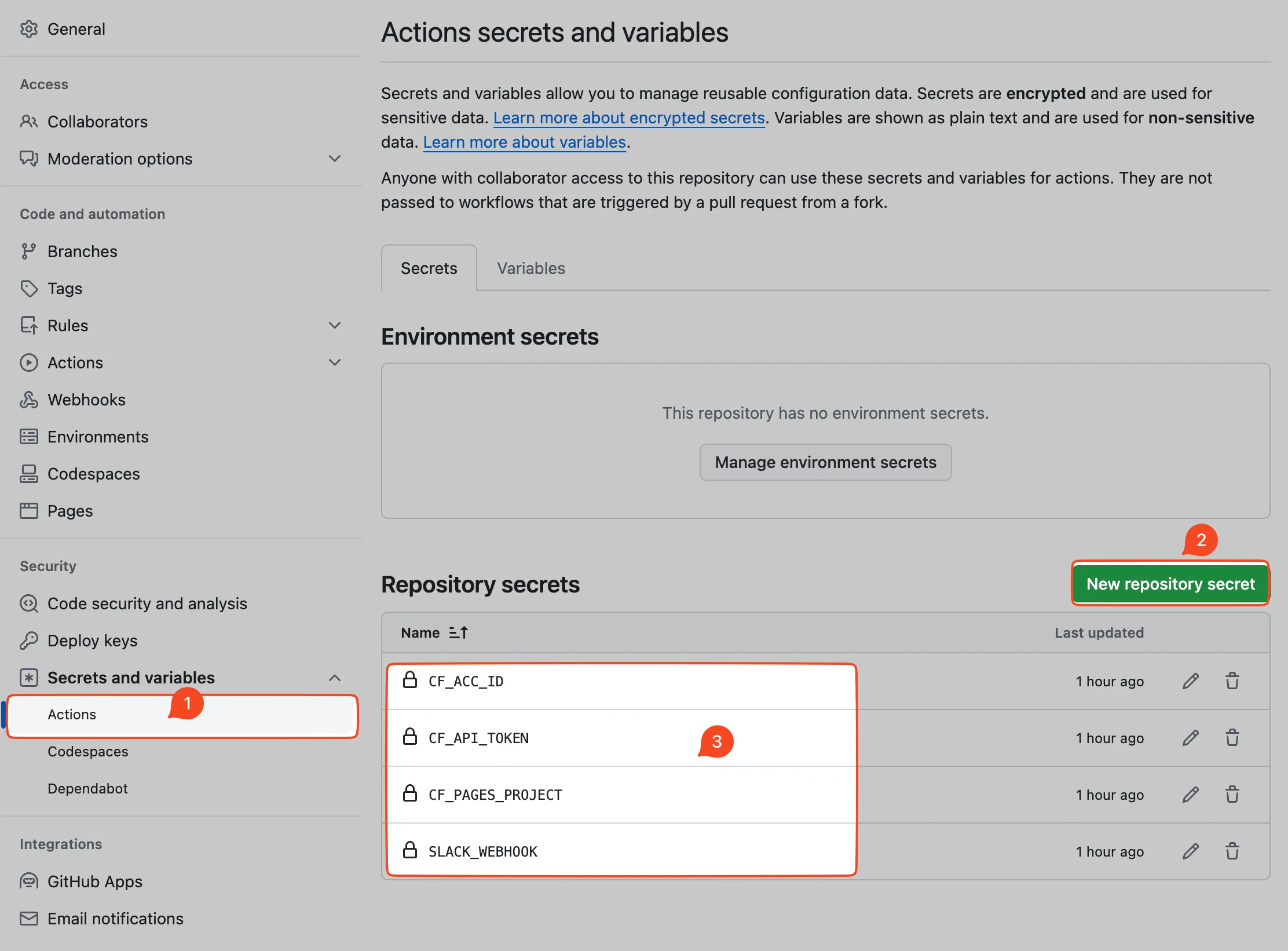

在你的网站的 Github 仓库中，点击 Settings -> Secrets and variables -> New repository secret，然后设置上面的变量。

4. Github Actions 代码

name: Detect Cloudflare pages deployment status and notify to Slack
on:
  push:
    branches:
      - main
    paths-ignore:
      - .github/**
  pull_request:
    branches:
      - main
    types: [closed]
    paths-ignore:
      - .github/**
  workflow_dispatch:
jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v3
      - name: Await CF Pages and send Slack notification
        id: cf-pages
        uses: arddluma/cloudflare-pages-slack-notification@v4
        with:
          # Clouodflare API token
          apiToken: ${{ secrets.CF_API_TOKEN }}
          # CloudFlare account ID
          accountId: ${{ secrets.CF_ACC_ID  }}
          # CloudFlare Pages project name
          project: ${{ secrets.CF_PAGES_PROJECT  }}
          # Create Slack Incoming webhook and add as variable https://hooks.slack.com/...
          slackWebHook: ${{ secrets.SLACK_WEBHOOK  }}
          # Add this if you want to wait for a deployment triggered by a specfied commit
          commitHash: ${{ steps.push-changes.outputs.commit-hash }}

效果

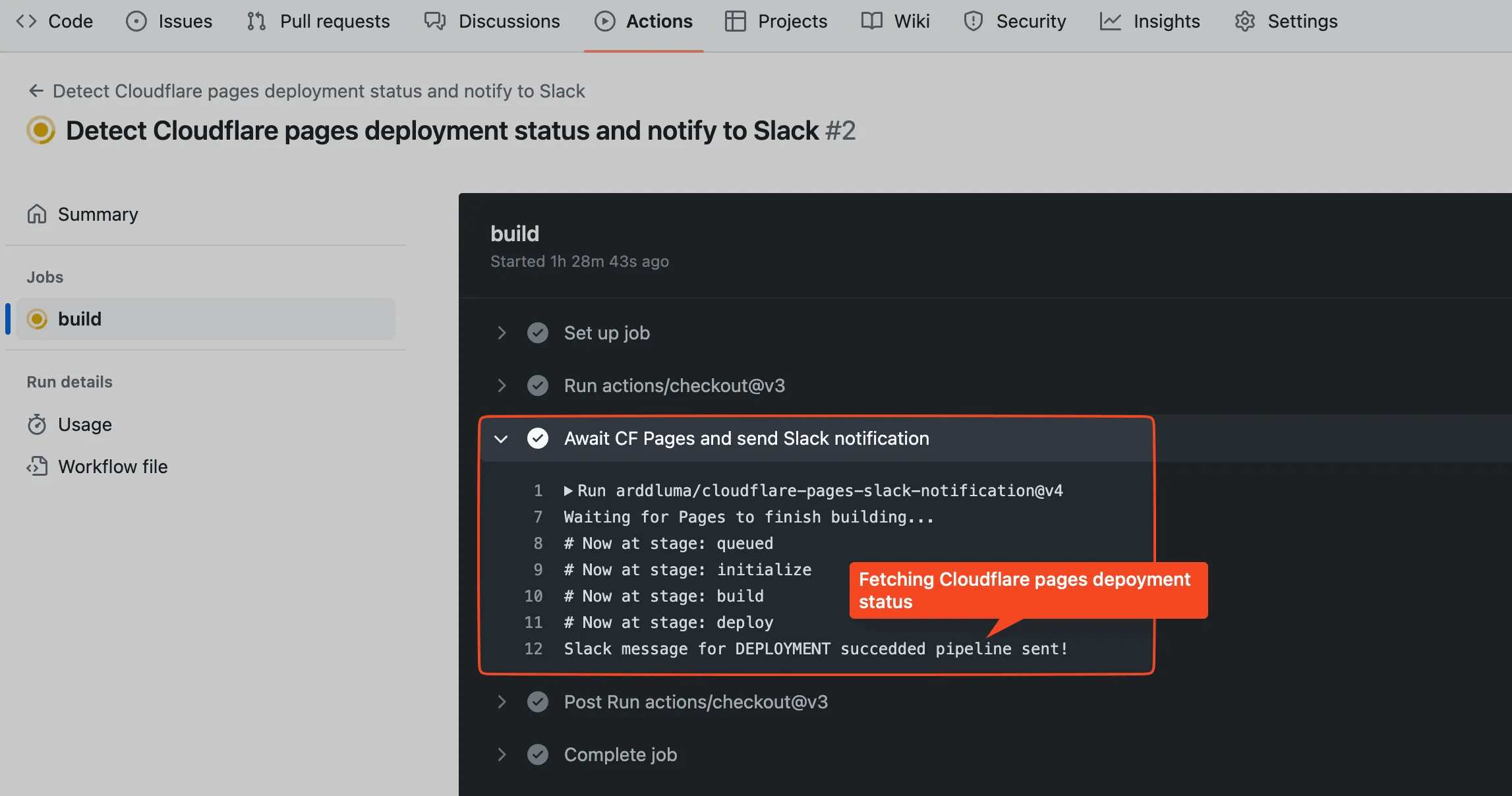

Github Action Build Progress:

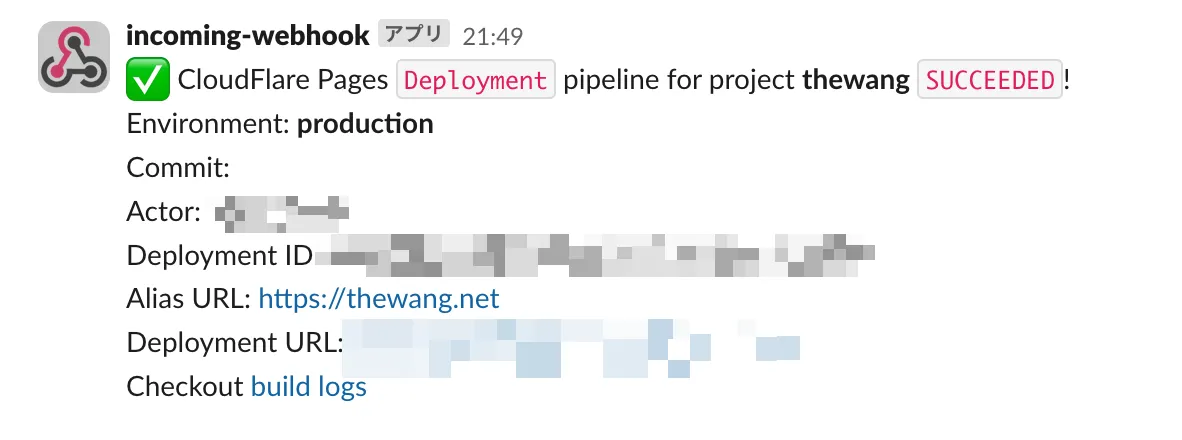

Slack notification:

Reference

Setup Cloudflare Pages Slack notifications
